Welcome to the Blue Whale Intelligent Robot Company's case display and store page! We are committed to providing customers with the most advanced robot technology, including delivery robots, inspection robots, industrial AGVs, fire robots and so on. Our delivery robot uses the latest artificial intelligence technology, which can realize intelligent ordering and automatic delivery, greatly improving the efficiency and service quality of the restaurant. Inspection robots can autonomously inspect, detect equipment operation status, find problems and report alarms in time, saving enterprises a lot of manpower and time costs. Our industrial AGV can be customized according to different production needs, can achieve unmanned operation of automated production lines, improve production efficiency and quality. Fire robots use advanced fire monitoring technology, which can detect fire hazards in time and extinguish them, greatly improving the level of fire safety. Our robot products are made of the latest technology and materials, with high efficiency, intelligence, safety and other advantages, can bring customers a better experience and effect. Our products come from top technology and professional teams, which guarantee the quality and reliability of products. Our team will provide you with the most professional technical support and services, so that you can buy more assured and satisfied. Now choose the robot products you need in the Blue Whale Intelligent Robot Company!

  • XiaoQiang XQ-4 Pro
    Name: XiaoQiang XQ-4 Pro Price: 1499 Detail:
  • XiaoQiang XQ-mini
    Name: XiaoQiang XQ-mini Price: 899 Detail:
  • XiaoQiang XQ5
    Name: XiaoQiang XQ5 Price: 2499 Detail:
  • Hub motor drive BW-DR03
    Name: Hub motor drive BW-DR03 Price: 299 Detail:

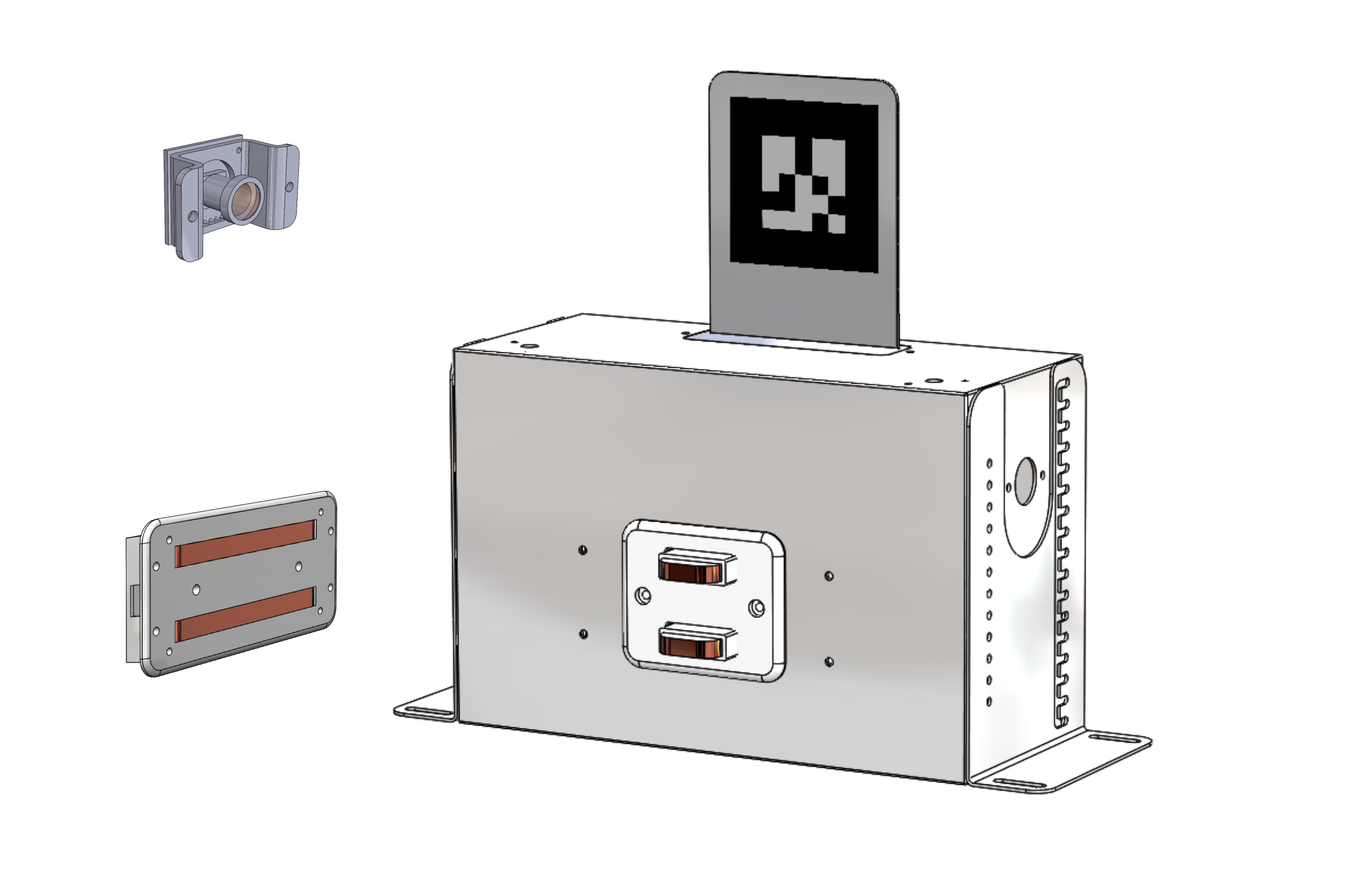

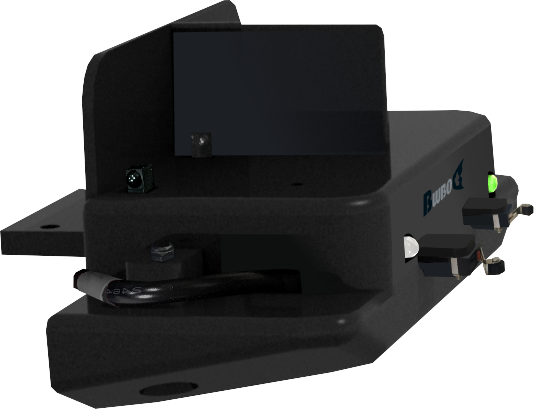

  • Automatic charging module
    Name: Automatic charging module Price: 399 Detail:

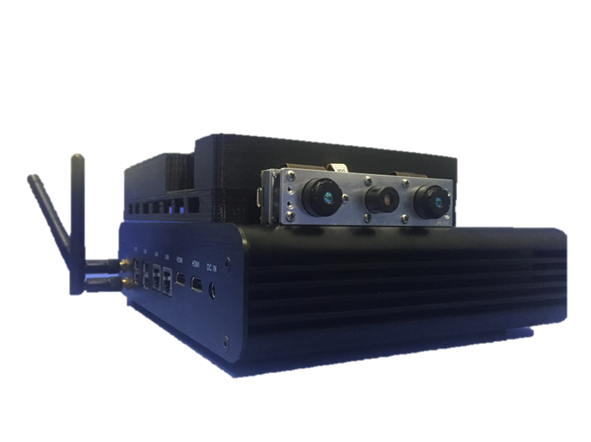

  • GL-V1 Visual navigation system
    Name: GL-V1 Visual navigation system Price: 3083 Detail:
  • Chitu AGV
    Name: Chitu AGV Price: 3516 Detail:

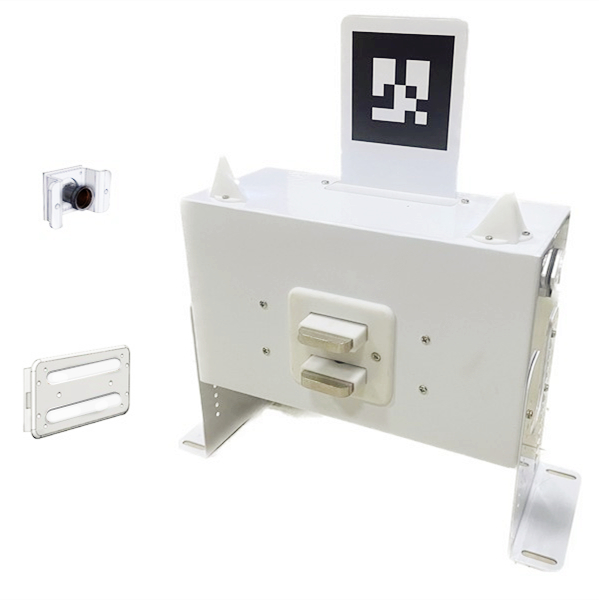

  • Automatic Charging Module2
    Name: Automatic Charging Module2 Price: 1370 Detail:

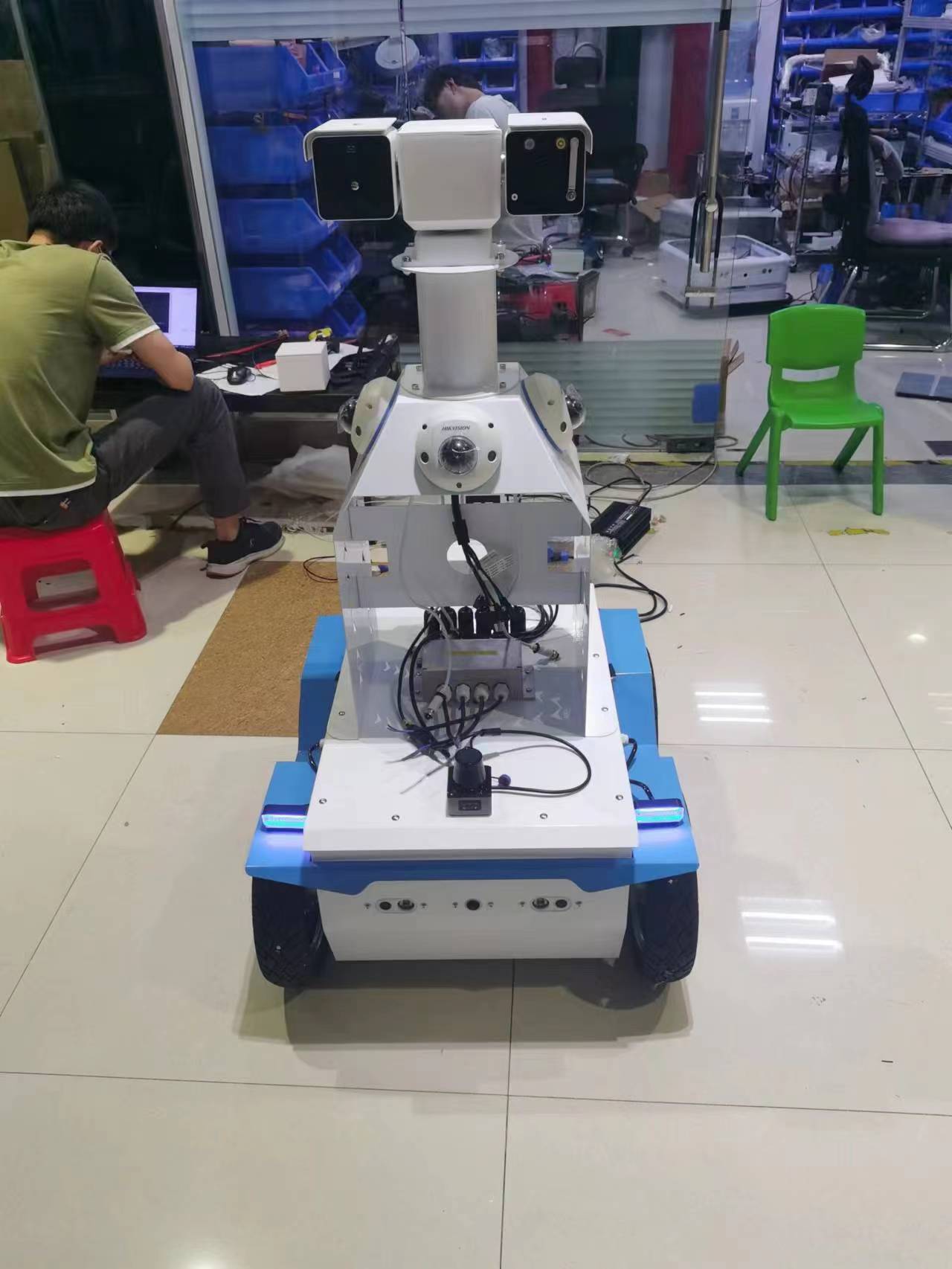

  • Bumblebee patrol robot
    Name: Bumblebee patrol robot Price: 15000 Detail:

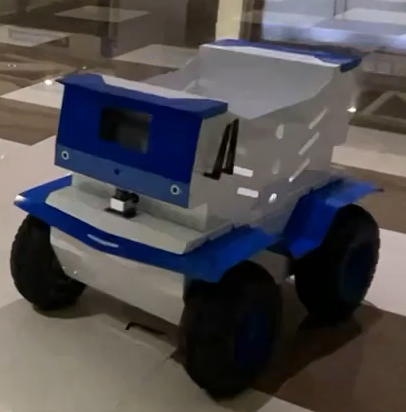

    Bumblebee off-road chassis

    Our HF-XL-001 Hornet off-road turf is an intelligent robot with great practical value. It adopts vision + radar hybrid navigation technology, which enables it to accurately navigate in various complex environments. Four-wheel differential drive and versatile driving mode make it easy to cope with a variety of complex terrain, such as undulating mountain roads and rough wilderness. It is also equipped with safety protective equipment such as obstacle sensors, lidar, ultrasonic and emergency stop buttons, ensuring the safety of personnel and equipment.

    Our Hornet off-road site can be widely used in industrial, agricultural, medical, security and other fields. It can replace manual inspection, improve inspection efficiency, and reduce labor costs. In the field of agriculture, it can carry out tasks such as crop inspection, fertilization, spraying, etc., to improve the yield and quality of crops. In the medical field, it can carry out automatic transportation of medicines and goods, reducing the burden on medical staff. In the field of security, it can carry out regional inspection, monitoring, alarm and other tasks to improve security capabilities.

    Our Hornet off-road site also features voice playback and voice command recognition for easy human-computer interaction. Long battery life and customizable to make your work more efficient. At the same time, its beautiful appearance and cool lighting make your work scene more atmospheric.

    Our product quality is reliable, stable performance, is your best choice. If you have any questions or need more information, please do not hesitate to contact us.

    Performance Parameters Description
    Product Model HF-XL-001
    Dimensions L730W630H600
    Minimum ground clearance 60mm
    Navigation Type Vision + Radar Hybrid Navigation
    Drive type Four-wheel differential drive
    Walking mode Forward, backward, rotating, bifurcation turning, and other multi-function driving
    Walking speed 0-2M/S
    rated load 100KG
    Climbing over obstacles Climbing not more than 8°Crossing obstacles is not more than 50MM
    Turning radius 90°/180°/360° rotation
    Navigation accuracy ±10mm
    Charging method Manual charging/automatic charging
    Safety protection Obstacle sensor + lidar ultrasonic + emergency stop button
    Battery life 8H(customizable)
    Lights turn signals/breathing lights
    human-computer interaction host computer system scheduling
    Voice function Voice playback/voice command recognition
  • Pudding food delivery robot
    Name: Pudding food delivery robot Price: 5000 Detail:

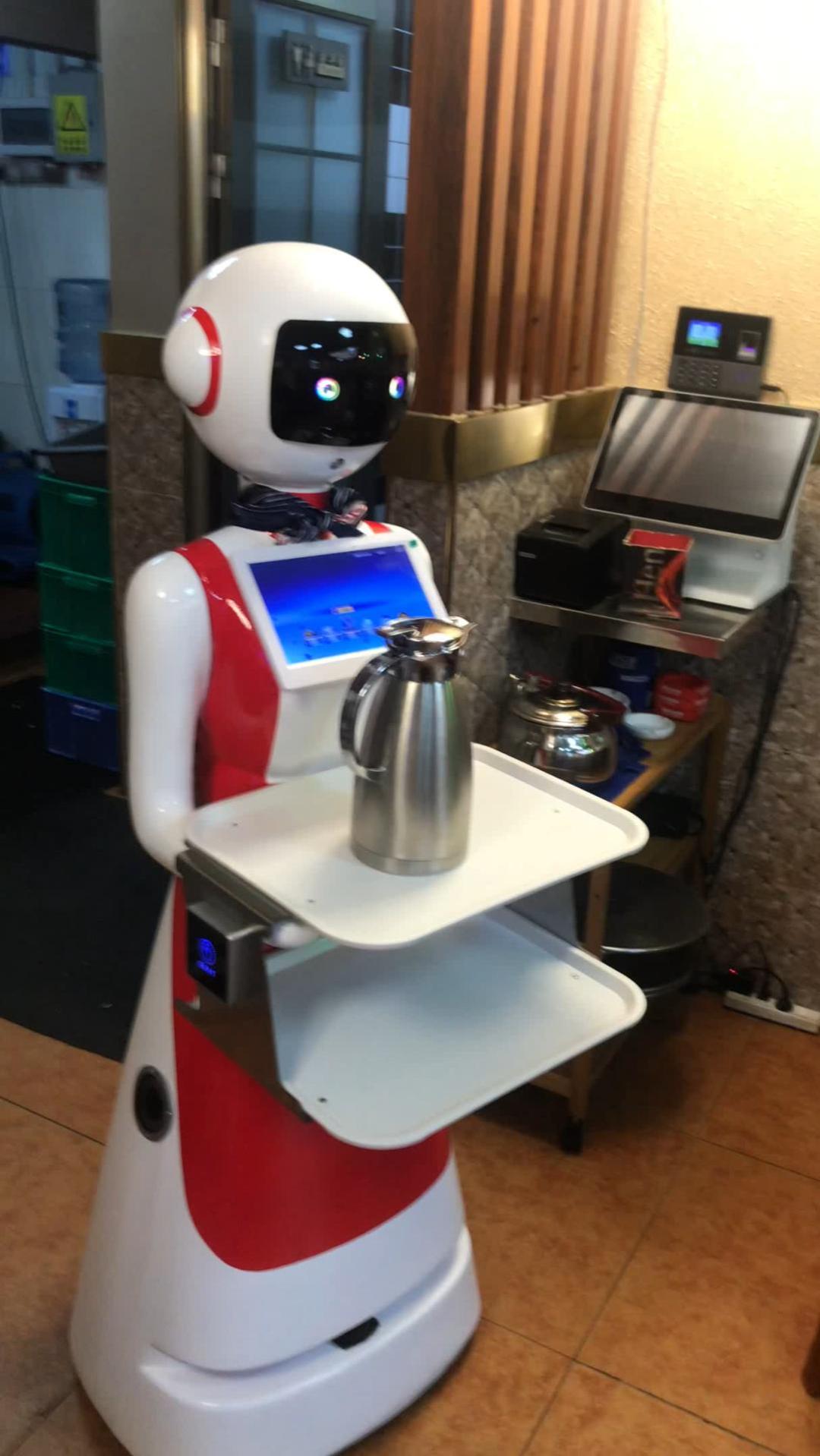

    Pudding delivery robot

    Our BD-SC-001 pudding food delivery robot is a high-performance, high-load robot, its tray size is L500*W340, up to three layers, able to carry 30KG items. The shape design of the pudding food delivery robot adopts the human-shaped form of a tray, which is fashionable and beautiful, which can attract people's attention. The robot adopts trackless SLAM navigation technology, can autonomously bypass obstacles, and the walking mode includes forward, backward, rotation, bifurcation and other multi-functional driving, the walking speed can reach 1.5M/S, the turning radius is small, and the navigation accuracy is as high as ±10mm.

    In terms of robot safety protection, obstacle sensors, lidar, and emergency stop buttons are used to ensure the safety of the robot during operation. The charging method of the robot has two ways: manual charging and automatic charging, and the battery life can be customized for up to 8 hours.

    The robot is also equipped with a 10-inch touch screen and voice command recognition, which can have good human-computer interaction with humans. The robot's lighting is designed with breathing lights, which is stylish and beautiful. This robot is widely used in restaurants, hotels, hospitals, exhibition halls and other places, which can provide customers with efficient, convenient and safe food delivery services, and can also improve the efficiency and image of enterprises.

    Our BD-SC-001 pudding delivery robot is an independent research and development product of Blue Whale Intelligent Robot Company, we have a professional technical team and perfect after-sales service, can provide customers with a full range of technical support and service guarantee. If you have purchase needs or want to know more robot application scenarios and technical details, please feel free to contact us.

    Performance Parameters Description
    Product Model BD-SC-001
    Dimensions L350W500H1600
    pallet size L500*W340 (up to three layers)
    Minimum ground clearance 30mm
    Navigation Type Trackless SLAM/Support Bypass
    Drive type Two-wheel differential drive
    Walking mode Forward, backward, rotating, bifurcation turning, and other multi-function driving
    Walking speed 0-1.5M/S
    rated load 30KG
    CLIMBING OVER OBSTACLES CLIMBING NOT MORE THAN 8°OBSTACLES, NOT MORE THAN 10MM
    Turning radius 90°/180°/360° rotation
    Navigation accuracy ±10mm
    Charging method Manual charging/automatic charging
    Safety protection Obstacle sensor + lidar ultrasonic + emergency stop button
    Battery life 8H(customizable)
    Display 10 inch touch screen/tablet
    human-computer interaction host computer system scheduling
    lights breathing lights
    Voice function Voice playback, voice command recognition
  • Intelligent navigation wheelchair
    Name: Intelligent navigation wheelchair Price: 7000 Detail:

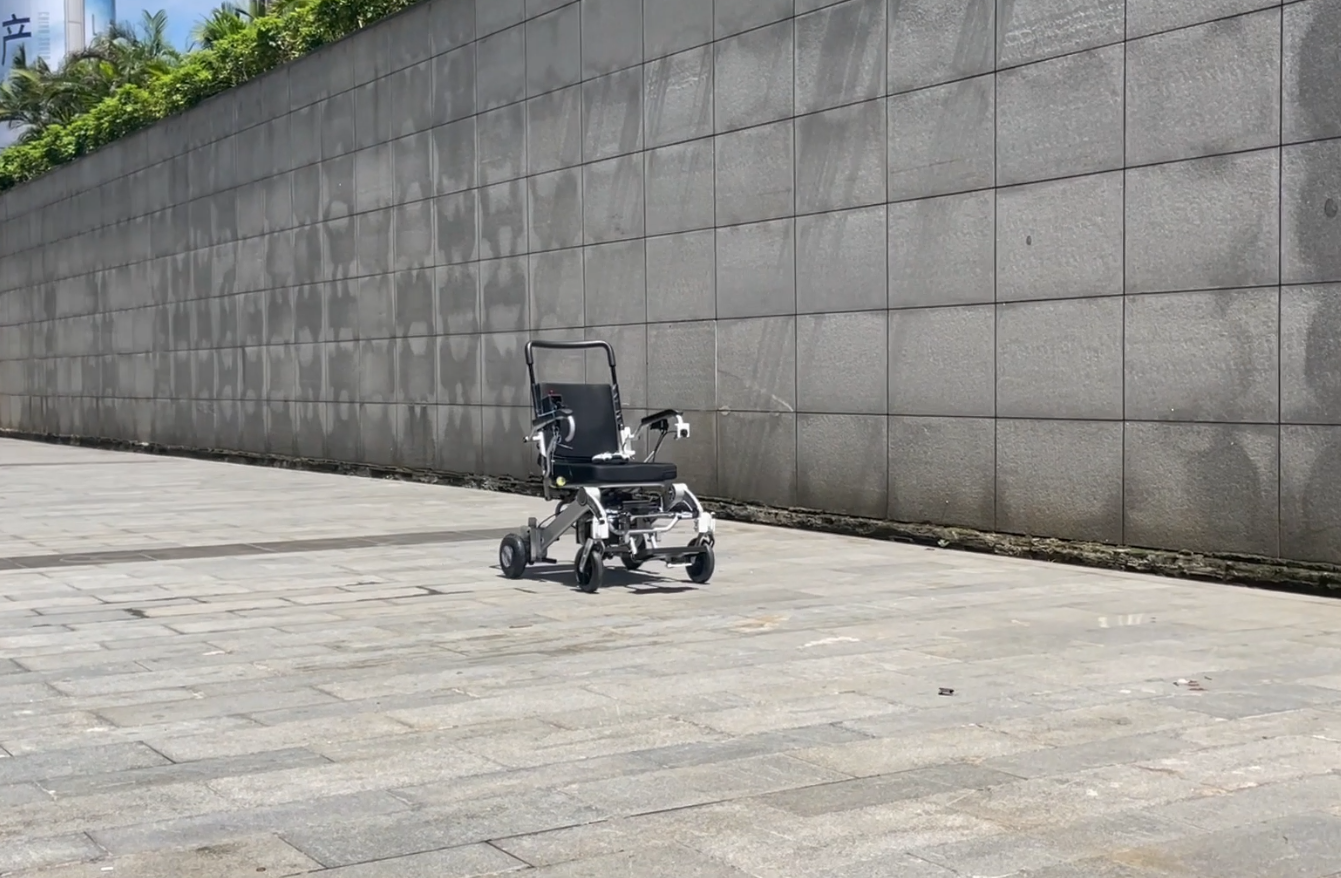

    Intelligent navigation wheelchair

    Blue Whale intelligent robot intelligent wheelchair is a high-end intelligent robot product integrating navigation, remote control, video surveillance and voice interaction. Not only does it meet your travel needs, but it also helps you manage your life more conveniently.

    Our smart wheelchairs use the latest navigation technology to allow users to create maps and set target points. All you need to do is tell your wheelchair where you want to go via the app or voice command, and it will automatically move to the corresponding position, making your travel plan easy and enjoyable. In addition, our smart wheelchairs also support remote control and video surveillance functions, so that you can control the dynamics of the wheelchair anytime, anywhere in different situations.

    Our smart wheelchair also supports voice interaction function, you can interact with the wheelchair through your voice, tell it your needs and ideas, and make it better serve you. We believe that this smart wheelchair can not only help you travel more conveniently, but also become an indispensable intelligent assistant in your life.

    Our smart wheelchair products have passed strict testing and certification and are of guaranteed quality. If you have any questions or needs about our products, please feel free to contact our customer service staff. We will be happy to serve you

  • AW-FW - Service Robot
    Name: AW-FW - Service Robot Price: 7000 Detail:

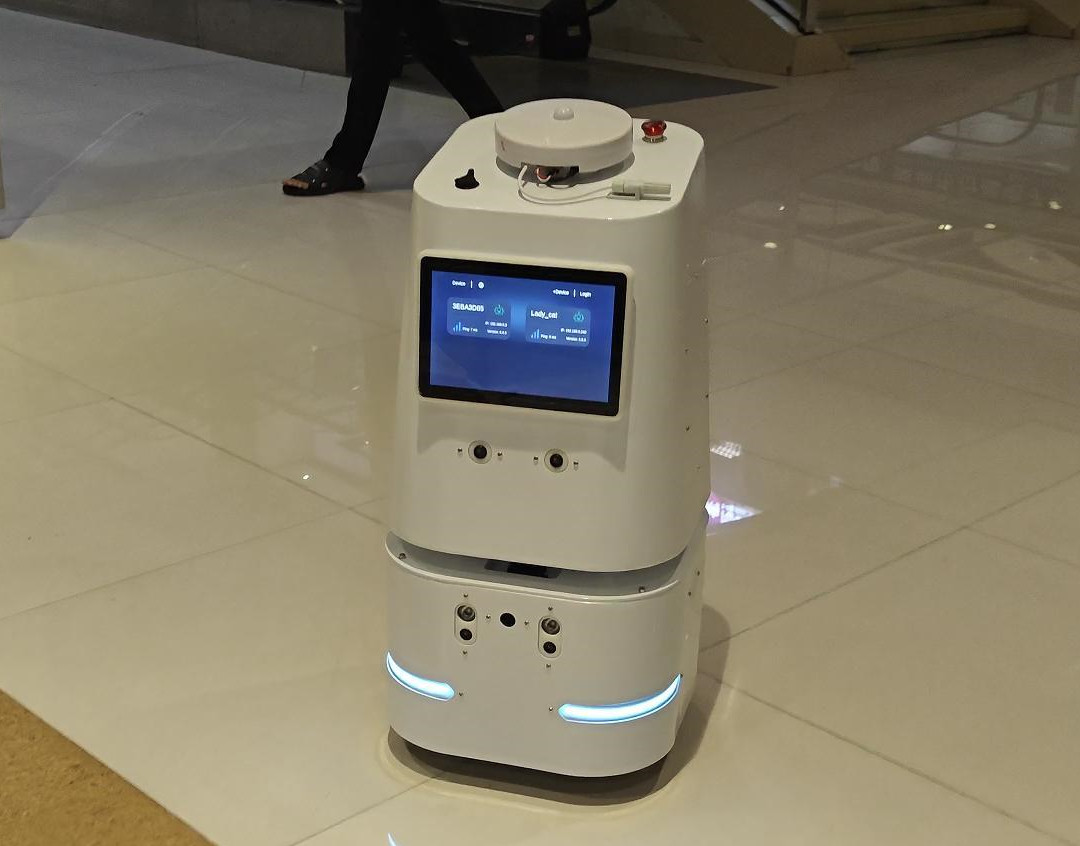

    SW-FW - Service Robot

    Welcome to Blue Whale Intelligent Robotics, our SW-FW-Service Robot is a powerful guided service robot. It adopts vision + radar hybrid navigation, can accurately navigate, walks fast, has a small turning radius, can travel freely in the busy flow of people, and provides customers with comprehensive guidance services. At the same time, it also has a variety of safety protection measures such as ultrasound, obstacle sensors and lidar, which ensure the safety of customers and robots.

    Our SW-FW-service robot also has a variety of extended applications, can be equipped with a variety of dangerous gas detection devices, adapt to a variety of ONVIF protocol support surveillance cameras, can be used in security inspection and other fields. In addition, it has voice playback and voice command recognition functions, which can interact with customers and provide more humanized services.

    Our SW-FW-service robot is a multifunctional robot that can be used in various occasions such as airports, hospitals, shopping malls, exhibition halls, etc. It can provide customers with navigation, information inquiry, item handling and other services, which greatly improves work efficiency and reduces labor costs.

    If you are looking for an efficient, safe and versatile guided service robot, then SW-FW-Service Robot must be your choice. We look forward to cooperating with you!

    Performance Parameters Description
    Product Model SW-FW-Service Robot
    Dimensions L400W400H800(customizable)
    Display 10.1 inch touch display
    Minimum ground clearance 30mm
    Navigation Type Vision + Radar Hybrid Navigation
    Drive type Two-wheel differential drive
    Walking mode Forward, backward, rotating, bifurcation turning, and other multi-function driving
    Walking speed 0-1.5M/S
    rated load 30KG
    Climb over obstacles Climb not more than 8°
    Turning radius 90°/180°/360° rotation
    Navigation accuracy ±5mm
    Charging method Manual charging/automatic charging
    Safety protection Obstacle sensor + lidar ultrasonic + emergency stop button
    Battery life 8H(customizable)
    Security check adaptation Adapt to various surveillance cameras that support ONVIF protocol
    Extended application Various hazardous gas detection devices can be installed
    human-computer interaction host computer system scheduling
    Lights turn signals/breathing lights
    Voice function Voice playback, voice command recognition
  • Security guard robot
    Name: Security guard robot Price: 15000 Detail:

    Security Guard Robot

    Our AF-SW-001 Security Robot is a powerful firefighting robot that can quickly extinguish fires in the event of a fire to protect your life and property. The robot adopts vision and radar hybrid navigation technology, which can autonomously avoid obstacles, accurately locate the fire source, and respond quickly, effectively avoiding the danger of manual fire extinguishing. In addition, it is equipped with safety measures such as obstacle sensors, lidar, ultrasonic and emergency stop buttons to ensure that no injury to personnel is caused during work.

    The robot wades to a depth of 100mm and can operate in shallow water. IT CAN ALSO CLIMB NO MORE THAN 30° AND CROSS OBSTACLES NO MORE THAN 150MM, ENSURING THAT IT CAN WORK IN COMPLEX TERRAIN ENVIRONMENTS. In addition, it can also carry out forward, backward, rotating, bifurcation turns and other multi-functional driving, and has a turning radius of 90°/180°/360° rotation in place, which is flexible and convenient to operate.

    In terms of fire extinguishing, the robot is equipped with a 30L water tank and a 2L water-based foam tank, which can carry out a variety of spraying methods such as direct current, flowering, and spraying, and the spraying time reaches more than 5 minutes. At the same time, it also has a pitch angle of -45 ° ~ +90 °, which can be easily sprayed to the position where the fire needs to be extinguished.

    Our AF-SW-001 Security Guard Robot is a powerful, safe and reliable firefighting robot that can protect your life and property. By purchasing our products, you can use them with confidence and enjoy more convenient, efficient and safe fire services.

    Performance Parameters Description
    Product Model AF-SW-001
    Dimensions L935W572H920
    Minimum ground clearance 60mm
    Navigation Type Vision + Radar Hybrid Navigation
    Drive type Two-wheel differential drive
    Walking mode Forward, backward, rotating, bifurcation turning, and other multi-function driving
    Walking speed 0-2M/S
    wading depth 100mm
    CLIMBING OVER OBSTACLES CLIMBING NOT MORE THAN 30°AND NOT MORE THAN 150MM
    Turning radius 90°/180°/360° rotation
    Navigation accuracy ±10mm
    Charging method Manual charging/automatic charging
    Safety protection Obstacle sensor + lidar ultrasonic + emergency stop button
    Battery life 8H(customizable)
    Maximum firing range 5-10m (adjustable)
    Water tank capacity 30L (water)
    Duration of spray ≥5 minutes
    foam dose 2L (water-based foam liquid)
    spray method DC/flowering/spray
    Pitch angle -45°~+90°
    Operating flow ≤6L/min
    Working pressure 2.0MPa
  • Robotic arm collaborative robot
    Name: Robotic arm collaborative robot Price: 15000 Detail:

    Robotic arm collaborative robot

    Our XZ-JXB-001 robotic arm collaborative robot is a new intelligent robot, which not only has advanced robotic arm functions, but also autonomously navigates, avoids, turns and other walking modes. This robot adopts vision + radar hybrid navigation, navigation accuracy up to ±5mm, whether in warehouses, factories, hospitals, schools or other places, can accurately and quickly complete tasks.

    Our robotic cobots can be customized in form factor and are suitable for a variety of different occasions. The robot arm model can also be selected according to customer needs, and can carry up to 10KG items. The robot also has the function of climbing and climbing obstacles, which can easily cross obstacles up to 20mm, and the climbing is not more than 8°.

    OUR ROBOTIC ARM COLLABORATIVE ROBOT ADOPTS TWO-WHEEL WHEEL DIFFERENTIAL DRIVE, THE WALKING SPEED CAN REACH 1.5M/S, AND CAN MOVE FORWARD, BACKWARD, ROTATE, BIFURCATION TURN AND OTHER WALKING MODES, WHICH IS VERY FLEXIBLE.

    To ensure safety, our robotic cobots are equipped with a variety of safety precautions such as obstacle sensors, lidar, ultrasonic and emergency stop buttons, which can effectively avoid collisions and other unexpected situations. The battery life of the robot can be customized according to customer needs, up to 8 hours.

    Our robotic cobots also have light and voice functions for voice playback and voice command recognition. At the same time, our robot can be dispatched and human-computer interaction through the host computer system, which is very convenient and practical.

    Our robotic arm collaborative robots can be widely used in various occasions, such as warehouses, factories, hospitals, schools, etc. It can complete a variety of complex tasks, such as item handling, shelf management, inspection, etc. If you are looking for an efficient, intelligent and safe robot, then our XZ-JXB-001 robotic arm collaborative robot is your best choice.

    Performance Parameters Description
    Product Model XZ-JXB-001
    Dimensions L1000W650H700(customizable)
    Robotic arm model Grab 1-10KG under order selection type supplement price difference
    Minimum ground clearance 30mm
    Navigation Type Vision + Radar Hybrid Navigation
    Drive type Two-wheel differential drive
    Walking mode Forward, backward, rotating, bifurcation turning, and other multi-function driving
    Walking speed 0-1.5M/S
    Climbing over obstacles Climbing not more than 8°Crossing obstacles is not more than 20MM
    Turning radius 90°/180°/360° rotation
    Navigation accuracy ±5mm
    Charging method Manual charging/automatic charging
    Safety protection Obstacle sensor + lidar ultrasonic + emergency stop button
    Battery life 8H(customizable)
    Lights turn signals/breathing lights
    human-computer interaction host computer system scheduling
    Voice function Voice playback/voice command recognition
  • Sweet bean delivery robot
    Name: Sweet bean delivery robot Price: 5000 Detail:

    Sweet bean food delivery robot

    Our sweet bean delivery robot is a high-performance, multi-functional and intelligent robot. It can help your restaurant or hotel achieve automated food delivery, improve work efficiency, and reduce labor costs. Whether during busy peak dining periods or normal hours, it delivers meals to guests quickly and accurately.

    Our robot uses advanced trackless SLAM navigation technology to pinpoint its position and navigate autonomously, while also supporting obstacle avoidance. Its driving form is two-wheel differential drive, the walking mode includes forward, backward, rotation, bifurcation turn and other functions, walking speed up to 1.5 m/s, small turning radius, can easily shuttle through the busy restaurant environment.

    With a rated load of 30 kg, the sweet bean delivery robot can easily carry multiple meals, and at the same time has the ability to climb hills and obstacles, easily climbing a slope of 8 degrees and crossing obstacles of 10 mm. It is also equipped with obstacle sensors, lidar, ultrasonic and other safety protection measures to ensure the safety of the robot during operation.

    The sweet bean food delivery robot also has a humanized human-computer interaction interface, equipped with a 10-inch touch screen and voice function, which can realize voice playback and command recognition. At the same time, it also has lighting functions, including turn signals and breathing lights, making it easier for your guests to find robots in the restaurant, improving the efficiency of the entire food delivery process.

    Sweet Bean Food Delivery Robot is a high-performance, multi-functional and intelligent robot, which can provide efficient, safe and convenient food delivery services for your restaurant or hotel, so that your guests can enjoy a better dining experience. Buying a sweet bean delivery robot is your best choice to improve the competitiveness of your restaurant and reduce costs!

    Performance Parameters Description
    Product Model TD-SC-001
    Dimensions L53045OH1200(customizable)
    Minimum ground clearance 30mm
    Navigation Type Trackless SLAM/Support Bypass
    Drive type Two-wheel differential drive
    Walking mode Forward, backward, rotating, bifurcation turning, and other multi-function driving
    Walking speed 0-1.5M/S
    rated load 30KG
    CLIMBING OVER OBSTACLES CLIMBING NOT MORE THAN 8°OBSTACLES, NOT MORE THAN 10MM
    Turning radius 90°/180°/360° rotation
    Navigation accuracy ±10mm
    Charging method Manual charging/automatic charging
    Safety protection Obstacle sensor + lidar ultrasonic + emergency stop button
    Battery life 8H(customizable)
    Display 10 inch touch screen
    human-computer interaction host computer system scheduling
    Lights turn signals/breathing lights
    Voice function Voice playback, voice command recognition
  • Outdoor logistics robots
    Name: Outdoor logistics robots Price: 18000 Detail:

    Outdoor logistics robot

    SW-WL-002 outdoor logistics robot is widely used in logistics warehousing, manufacturing, medical, hotel, airport and other scenarios. It can replace manual logistics transportation, handling, sorting and other work, greatly improving the efficiency and accuracy of logistics transportation. At the same time, the robot has a high load capacity and can easily carry a variety of goods, including heavy and bulky items. In addition, the robot's vision + dual radar hybrid navigation technology can achieve high-precision navigation in the outdoor environment, effectively avoid obstacles, and ensure the safety and stability of the robot. FOUR-WHEEL DIFFERENTIAL DRIVE, WITH FORWARD, BACKWARD, ROTATING, BIFURCATION TURNING AND OTHER MULTI-FUNCTIONAL DRIVING MODES, WALKING SPEED UP TO 1.5M/S. THE MAXIMUM LOAD CAN REACH 500KG, THE CLIMB IS NOT MORE THAN 8°, THE OBSTACLE CROSSING IS NOT MORE THAN 50MM. The robot is also equipped with a 10-inch touch screen and voice function to facilitate human-computer interaction and operation. In addition, the robot has a battery life of up to 8 hours and can be customized according to user needs. Our SW-WL-002 outdoor logistics robot will provide more efficient and intelligent solutions for your logistics transportation, making your logistics work easier and more convenient.

    Performance Parameters Description
    Product Model SW-WL-002
    Dimensions L800W65OH430(customizable)
    box size L740W450H400(customizable)
    Minimum ground clearance 60mm
    Navigation Type Vision + Dual Radar Hybrid Navigation
    Drive type Four-wheel differential drive
    Walking mode Forward, backward, rotating, bifurcation turning, and other multi-function driving
    Walking speed 0-1.5M/S
    rated load 100KG-500KG
    Climbing over obstacles Climbing not more than 8°Crossing obstacles is not more than 50MM
    Turning radius 90°/180°/360° rotation
    Navigation accuracy ±10mm
    Charging method Manual charging/automatic charging
    Safety protection Obstacle sensor + dual lidar ultrasonic + emergency stop button
    Battery life 8H(customizable)
    Display 10 inch touch screen
    human-computer interaction host computer system scheduling
    Lights turn signals/breathing lights
    Voice function Voice playback, voice command recognition

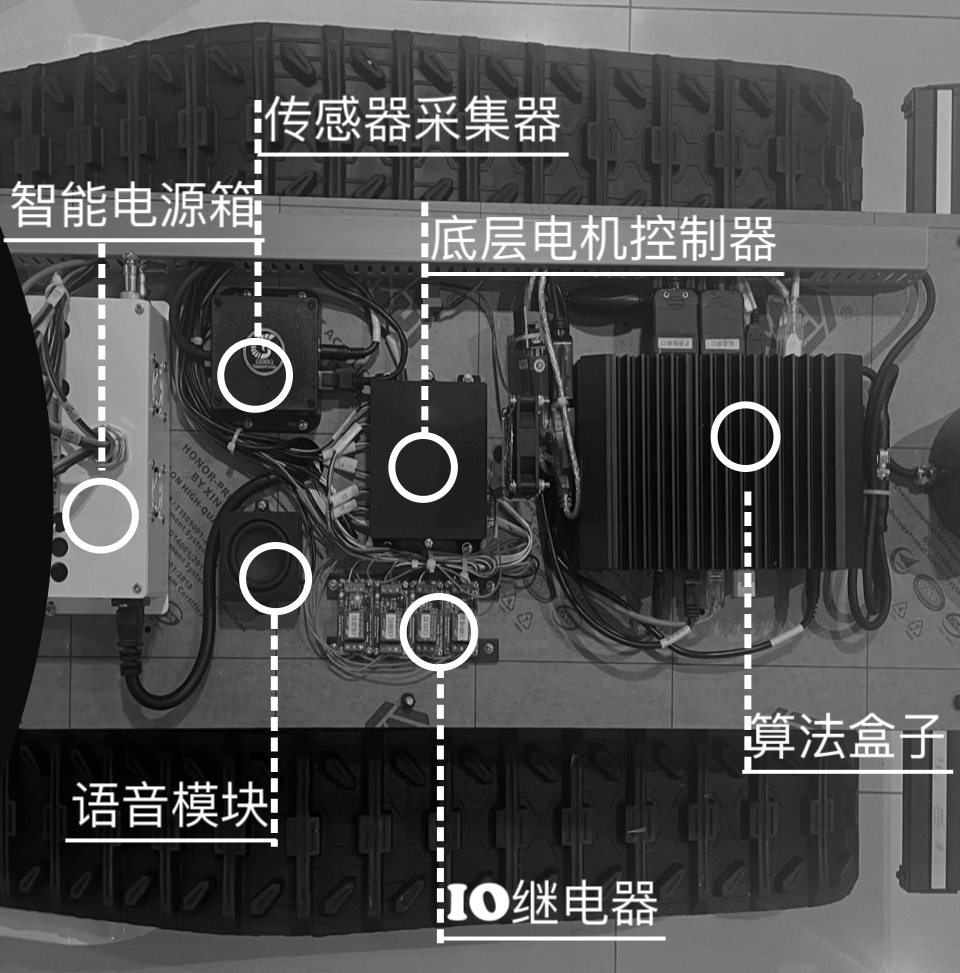

  • Multi-functional off-road by-wire site
    Name: Multi-functional off-road by-wire site Price: 15000 Detail:

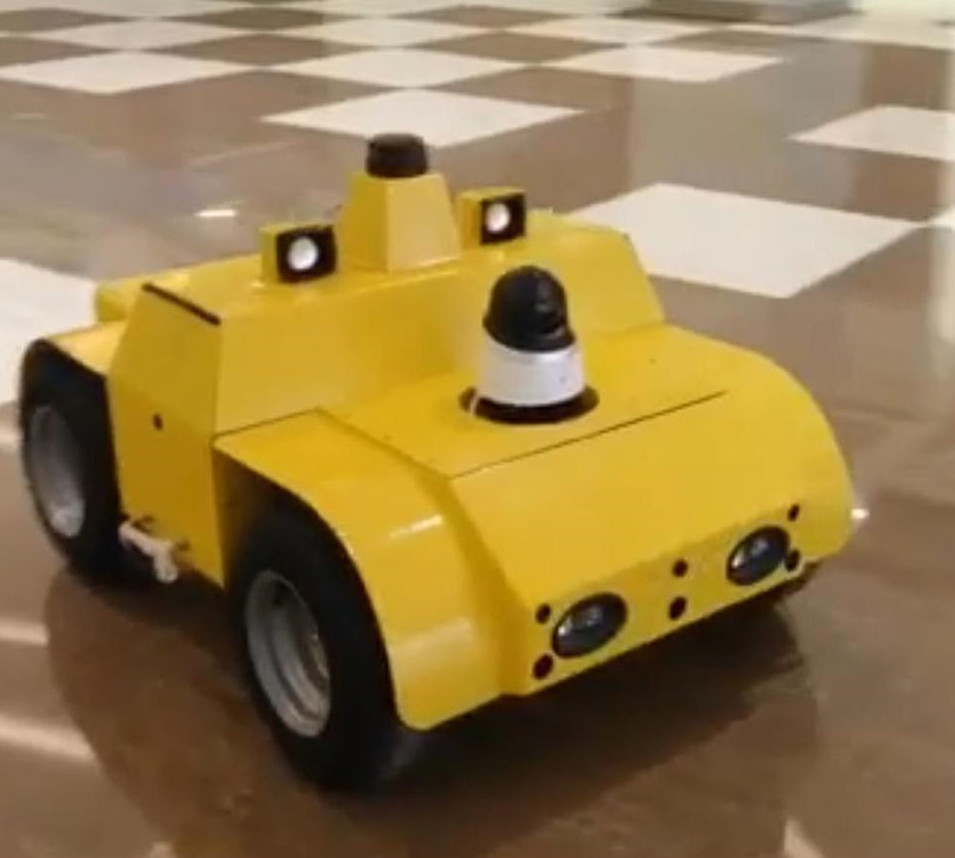

    Multifunctional off-road chassis

    Our SW-XL-001 outdoor universal robot chassis is a versatile off-road chassis with excellent performance and stable navigation system to meet your needs in different occasions. It adopts visual and radar hybrid navigation, can easily cope with a variety of complex environments, the drive form is four-wheel differential drive, the walking mode includes forward, backward, rotation, bifurcation turning and other functions, walking speed up to 1.5 m / s, rated load up to 500 kg, climbing no more than 8 degrees, obstacle crossing is not more than 50 mm.

    In addition, SW-XL-001 also has a flexible turning radius, 90 degrees/180 degrees/360 degrees rotation in place, navigation accuracy up to ±10 mm, charging method can be manual or automatic charging, safety protection using obstacle sensors, lidar, ultrasonic and emergency stop button and other technical means to ensure your safety. The battery life is up to 8 hours, which can be customized according to customer needs.

    In addition, SW-XL-001 also has turn signals and breathing lights and other lights, which is convenient for night operation, human-computer interaction can be dispatched through the host computer system, and the voice function can be used for voice playback and voice command recognition.

    Our SW-XL-001 outdoor universal robot chassis is a robot chassis with excellent performance, complete functions, safety and reliability, which can be widely used in industrial automation, logistics and transportation, environmental monitoring and other fields. The quality of our products has been recognized and trusted by our customers, and we will wholeheartedly provide you with quality products and services.

    Performance Parameters Description
    Product Model SW-XL-001
    Dimensions L730W630H400(customizable)
    Minimum ground clearance 60mm
    Navigation Type Vision + Radar Hybrid Navigation + Differential GPS
    Drive type Four-wheel differential drive
    Walking mode Forward, backward, rotating, bifurcation turning, and other multi-function driving
    Walking speed 0-1.5M/S
    rated load 100KG-500KG
    Climbing over obstacles Climbing not more than 8°Crossing obstacles is not more than 50MM
    Turning radius 90°/180°/360° rotation
    Navigation accuracy ±10mm
    Charging method Manual charging/automatic charging
    Safety protection Obstacle sensor + lidar ultrasonic + emergency stop button
    Battery life 8H(customizable)
    Lights turn signals/breathing lights
    human-computer interaction host computer system scheduling
    Voice function Voice playback/voice command recognition
